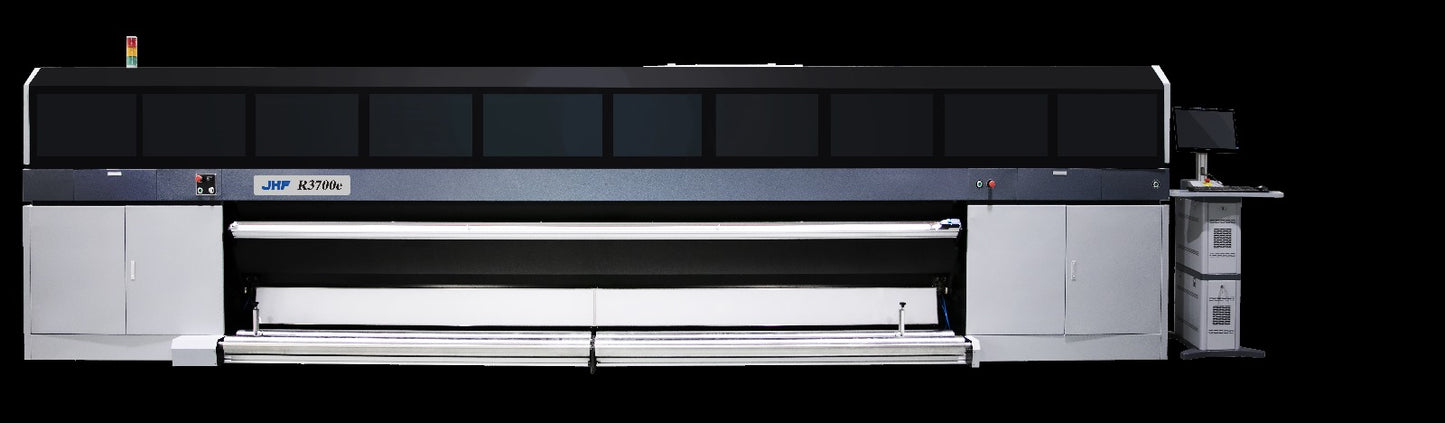

PRINTER MODEL R7000Pro/R3700Pro

R7000Pro/R3700Pro 5/3.2-meter high speed UV inkjet printer

JHF R7000Pro/R3700Pro, super grand format UV printer, integrates experiences of hundreds of high-end customers around the world during 10 years. With 1800dpi printing resolution, its print- ing speed is 4 times faster than current market existing models. tI offers an unrivalled combination of speed and quality to give you a competitive advantage in the high-end graphics market. It is leading printer of HD lightbox and backlit film. JHF R7000Pro/R3700Pro redefines the Industy's new standreds and supports you to seize market chances.

Exceptional quality, high productivity, and friendly environment TEasily print ahuge picture of unlimited length with width of up to 5000mm.
High-quality, high-performance, 600dpi physical resolution and high speed industrial variable ink droplet printheads make printing output more outstanding.
Linear-driven printhead carriage delivers perfect registration, which makes no loss ni print quality at print edge.
Using anti-ultraviolet glass, more environmentally friendly and sater.
Using imported high-precision mute linear guide rail, make you enjoy the quiet printing process.
Two pairs of rubberised rollers both ni front and back deliver a consistently accurate media feeding and provide consistency
over long print runs. Those rollers protect printed media surface and are capable of mass and express printing works.

JHF R7000Pro/R3700Pro roll-to-roll high-speed large-format industrial printer s e t a n e w benchmark for UV image graphics.
JHF R7000Pro/R3700Pro high-speed large-format industrial printer gives efficient

Max Printing width Printhead model
Printing speed
Substrates
Inks
Ink colors
Controlling software Environmental requirements Air pressure parameters Connectivity
Electrical power Machine Size Machine weight
5000mm Kyocera 6c*2
Express mode Quality mode
High Quality mode Ultra Quality mode
300 × 1800dpi 600 × 1200dpi
600 × 1800dpi 1200 ×1200dpi
230/200 m₴/h
180/150 m2⁄3h/ 120/100 m2/h
95/80m//h Lightbox PVC, backlit PET film, fabric and soft signage material UV ink
C. M. Y. K. Lo, Lm, Ly, Lk JHF Printer
Temperature 18~28°C, Humidity 30% ~70% (non-condensing) ≥ 8kg/ cm?
PCIE
3-phase, 380AV/25KW
L8370mm*W 2050mm*H 2150mm / L6620mm*W 2000mm*H 1940mm 6930KG/3800KG Reliable and humanized design,
precise control capacity
High precision metal raster, high-performance linear motor, with sealed high-precision control tech contribute superior
p miunigosoluuoil.
Highly-precise negative pressure system, cut down on wasted compressed air over 90%, effectively extend service time of air compressor.
printhead cariagecanbevaredautomatcail, reducingdeviatonsand errors caused by manual operations.
Using safe and reliable towline solutions ensures the move- ment of cable smoothly and stable.
Unique sub-ink tanks control technology ensures the sudden Diackout ink satety witnout leakage.
Rectangular welded frame with inner triangle ensures high strength and no deformation of printer body.
Multiple national patents
Unique LED lamp curing solution, more energy-saving and environmentally protection, the image si cured instantly, with higher definition, brightness and color saturation.
National patented tensioning and feeding system, combined with super-large diameter rollers, ensures that each step is extremely accurate.
National patent roler structure provides a solid foundation for smooth feeding of the whole machine.
National patent shocking appearance gives a solid and reliable spiritual experience.

commercial display applications to digital printing suppliers, such as ultra-wide light box film, exhibition graphics, POS displays, commercial graphics and more
JHF R7000Pro/R3700Pro could significantly extends your printing capacities and broaden the scope of business appli- cation,helpingyourbusinessgrowandseizetheopportunityinthecompetition.
